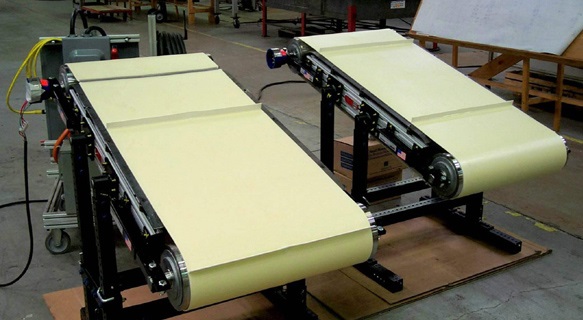

Conveyors

  • Proprietary single and double bubble urethan belting
  • Other belt types are available
  • Proprietary urethane belt guide
  • Extrusion mounted
  • Available up to lengths up to 12'

Lifters

  • Two types available: medium duty and heavy duty
  • Conveyor mounted medium duty attaches to conveyor extruded frame
  • Heavy duty is generally floor or table mounted
  • Medium duty available in 4" to 10" stroke

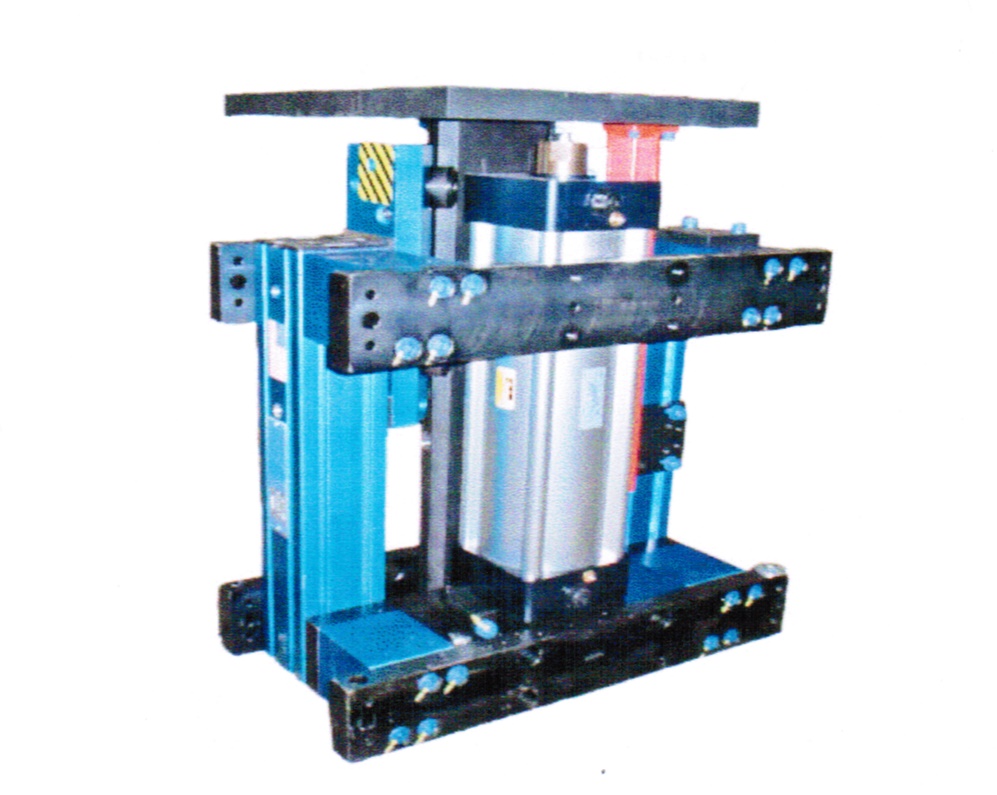

  • Heavy duty available up to 20" stroke

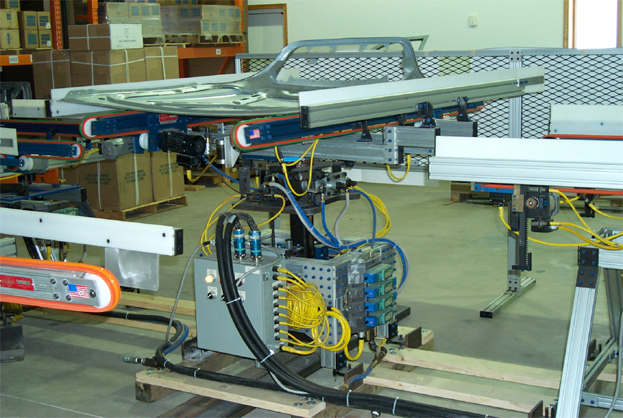

Rotates

  • Pneumatic dual cylinder operation
  • 90deg to 270deg rotation
  • Disc type braking mechanism
  • Rotation speed adjustable
  • Maximum length of rotate conveyor of 6'

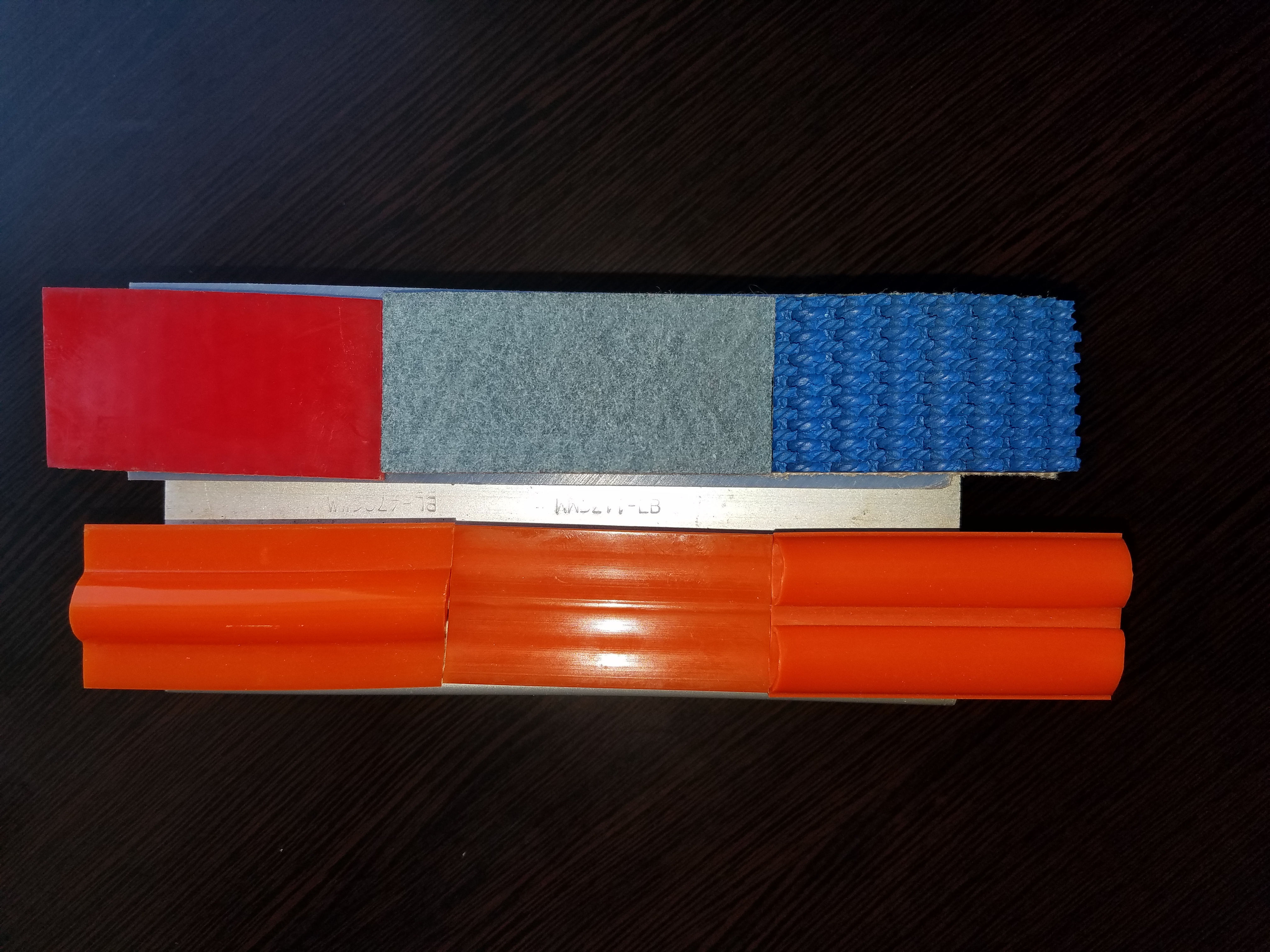

Belt Types

  • Flat Urethane and Nitril
  • Blue urethane rough top
  • Dual durometer single and double bubble urethane belts
  • Single bubble used for flat conveyance
  • Double bubble used for Class A surfaces
  • Saniveyor stainless steel conveyor frame with plastic chain belting

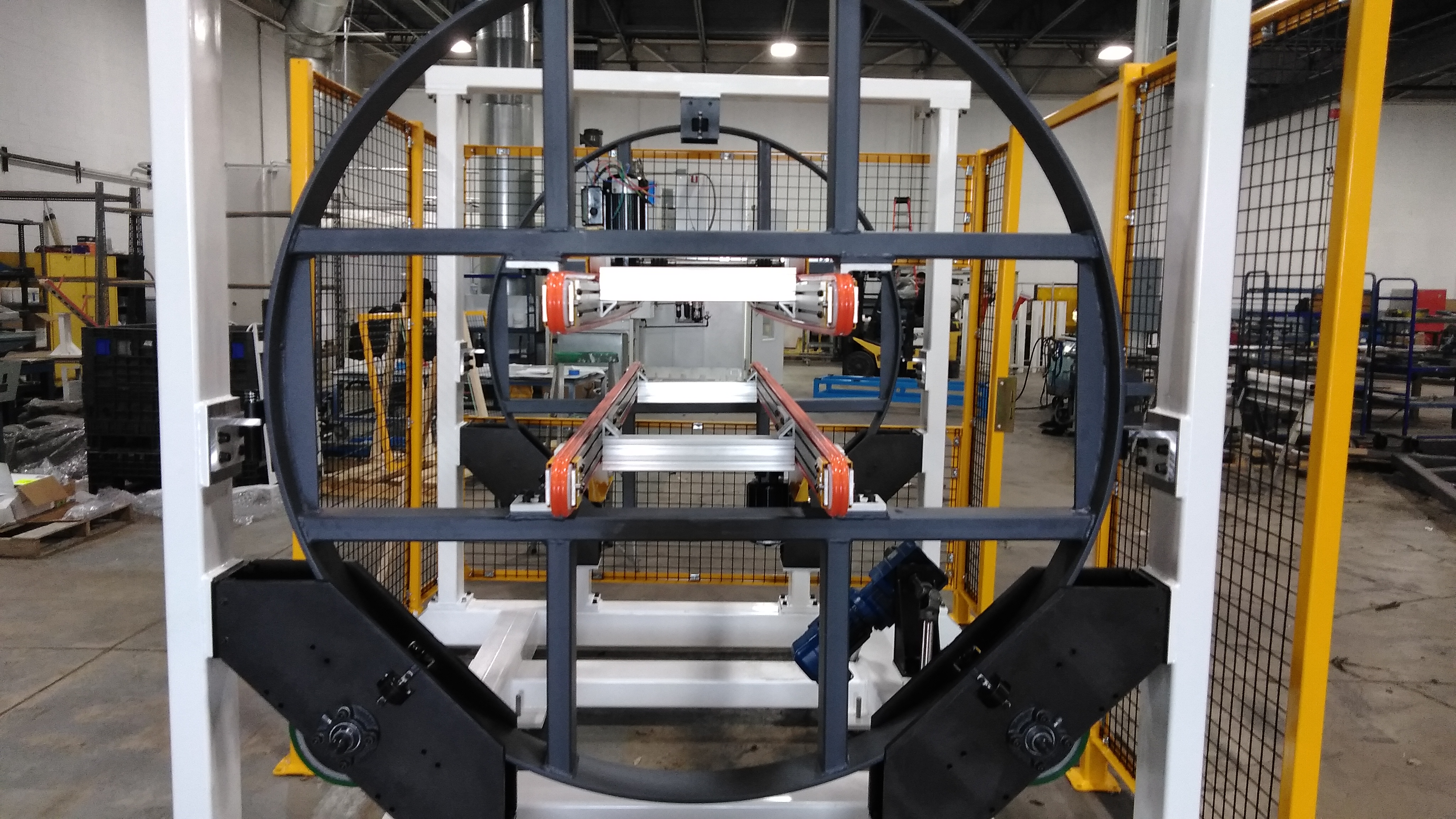

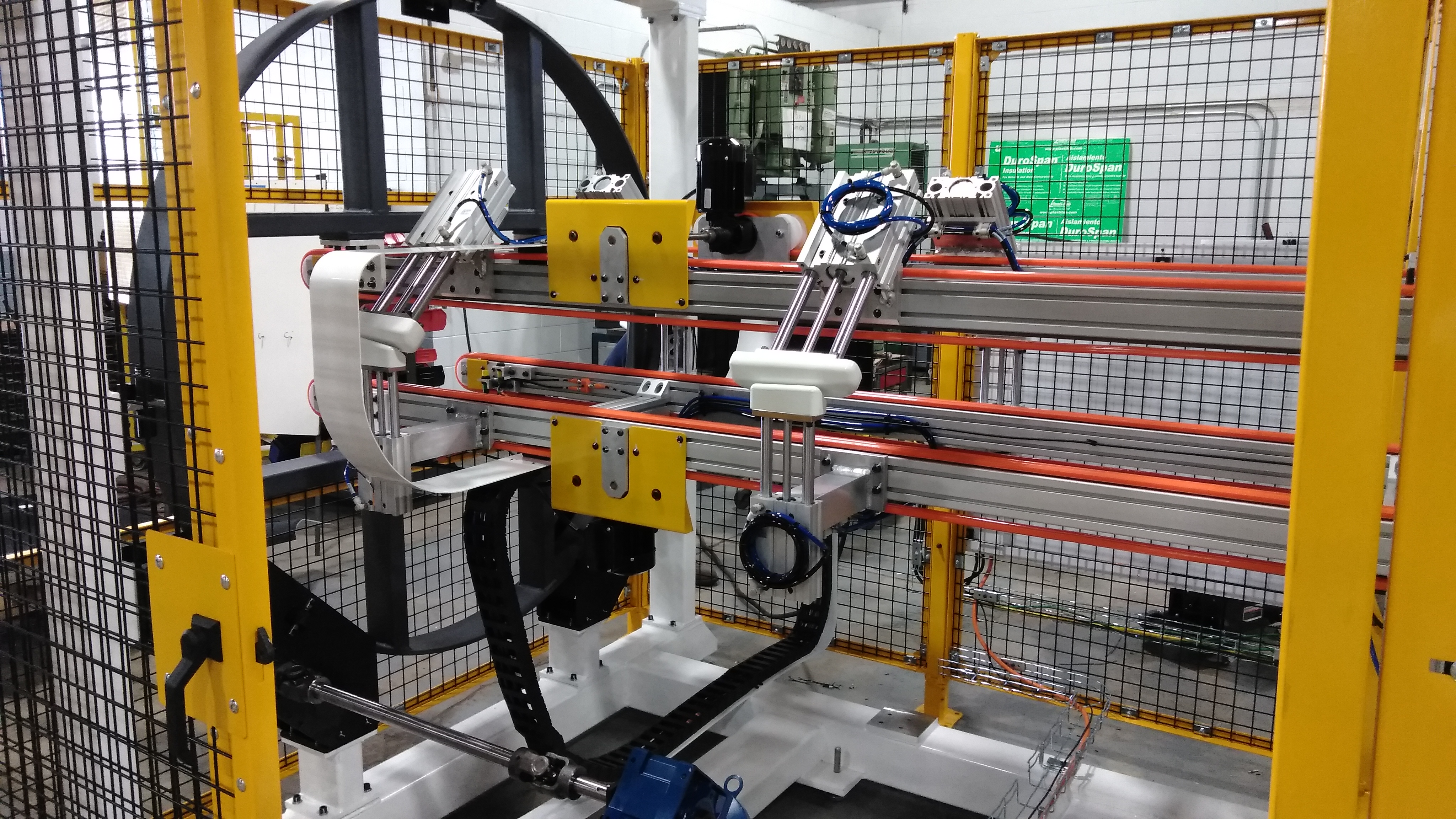

Rollover

  • Dual conveyor system for 180deg rotate
  • Barrel type construction
  • Electric gear motor rotation
  • 10' maximum product length

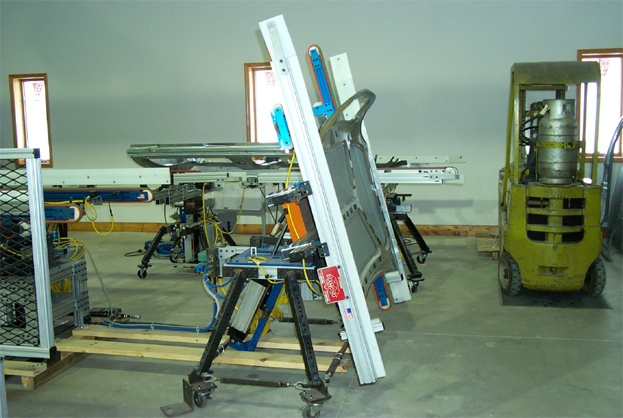

Tip Ups

  • Pneumatic operation to raise and lower
  • Used for personnel access through the line
  • 4' maximum length
